5-axis CNC machining services.
Review complex contours and features on multiple faces. Multi-axis access can simplify some setups, but the complete route still depends on geometry and inspection.
When multi-axis access helps.
| Design topic | Practical consideration |
|---|---|
| Complex surfaces | Contoured surfaces and angled features may benefit from changing the tool orientation. |
| Setup strategy | The review distinguishes indexed machining from simultaneous motion according to the part. |
| Tool clearance | Adjacent walls, fixtures and tool length can limit access even with additional axes. |
| Inspection access | An accessible cutting surface is not automatically an accessible measuring surface. Define the inspection approach for hidden or angled features. |
On a small screen, swipe the table to read all columns.
Materials, finishes and inspection.
The documented metal range includes aluminum, stainless steel, titanium, Nitinol and cobalt-chromium. The appropriate alloy and stock condition depend on the component. Engineering polymers and other materials need a separate suitability and sourcing review.

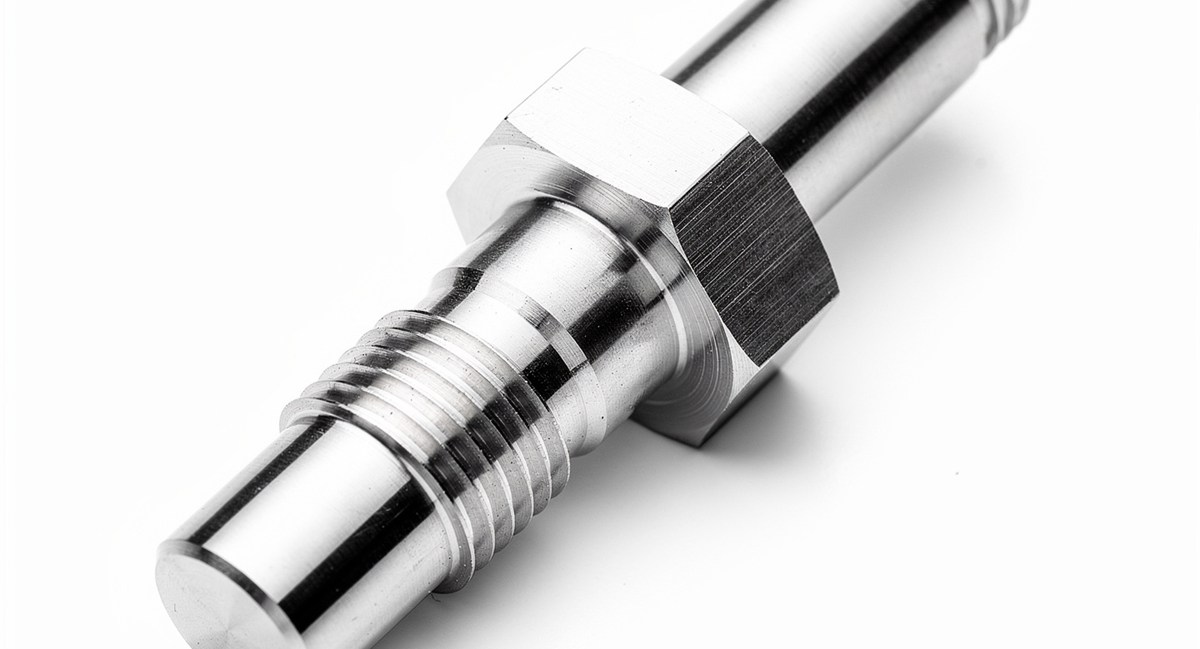

As-machined and controlled edges
Use this route when function takes priority over cosmetic uniformity. Define burr removal, edge breaks, roughness and surfaces that must retain sharp geometry.

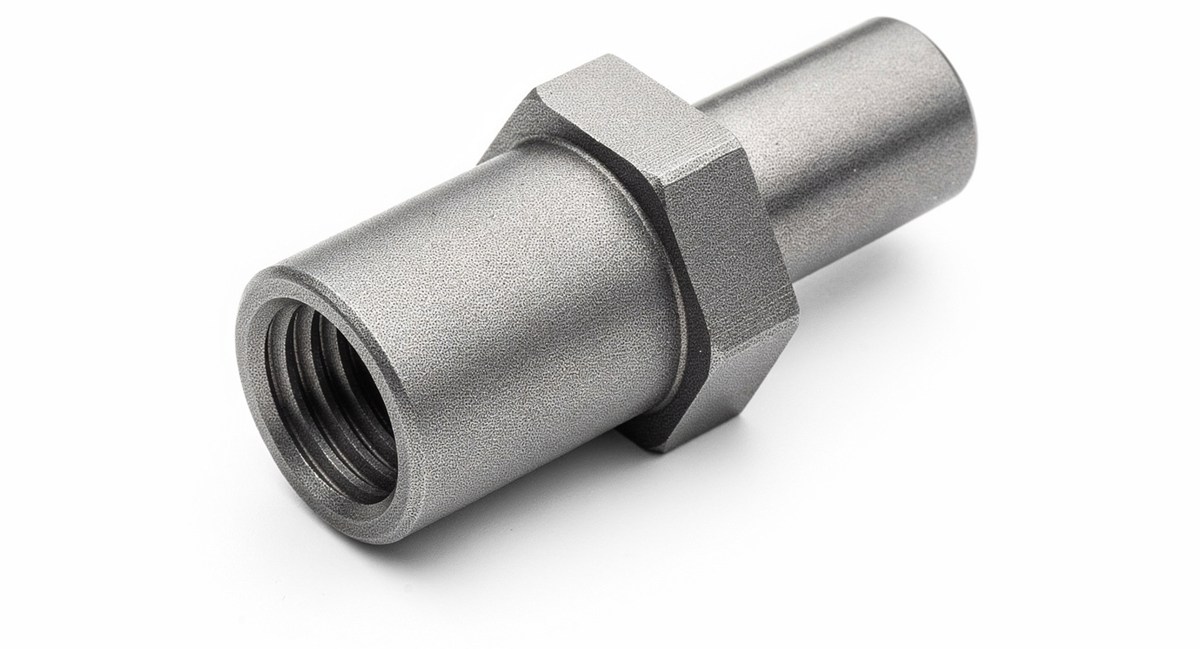

Specified finishing
Discuss anodizing for suitable aluminum, polishing or other specified treatments during quotation. Coating thickness, masking and finishing suppliers must be agreed before final dimensional acceptance.
Feature-based inspection
Datums, bearing fits, threads and sealing surfaces need inspection methods that can access and measure them. Agree the report scope and sampling plan with the order.
Choose multi-axis machining for the part, not the label.

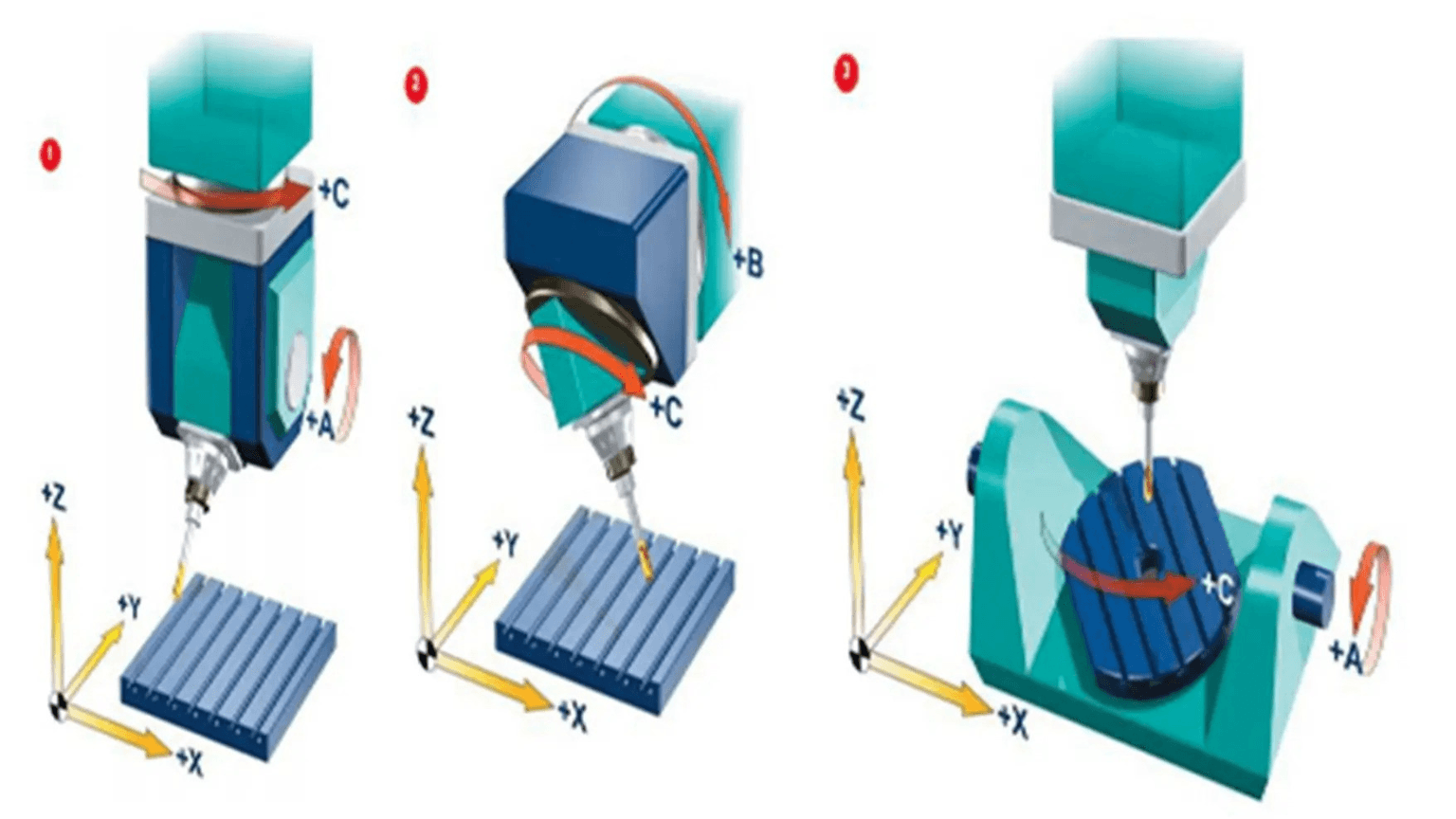

Indexed or simultaneous
Ask which strategy the geometry actually needs. Indexed access and simultaneous motion are different approaches, and neither establishes a universal accuracy level.
Access and workholding
Review tool clearance, support and the remaining surfaces needed to locate the part. Multiple axes do not remove every restriction on deep or hidden features.
Acceptance plan
Keep critical contours and cross-face relationships tied to drawing datums. Confirm how the finished features will be inspected before agreeing the manufacturing route.
Quality evidence that matches the order.
Agree the drawing revision, critical dimensions, inspection method and required records before production. Dimensional checks can include coordinate measurement, optical inspection and gauges as appropriate to the feature. Material records and inspection reports should be listed in the order scope; a report is not automatically a product certification.
