hypotubes are high-precision thin-walled metal tubes designed for medical devices, subcutaneous injection tubes and precision industrial applications. These applications require high precision, corrosion resistance and flexibility for hypotubes. From catheter-based interventions to surgical robots, hypotubes are an important component in navigating complex anatomical paths through minimally invasive methods. Their ability to withstand demanding environments makes them indispensable in both healthcare and high-tech manufacturing.
With the development of technology, the demand for hypotubes tube catheter solutions, burr free manufacturing processes and laser cutting accuracy continues to grow in various industries. In order to better understand what hypotubes is, as a professional CNC machining manufacturer, we will discuss the complete guide to hypotubes with you in this article

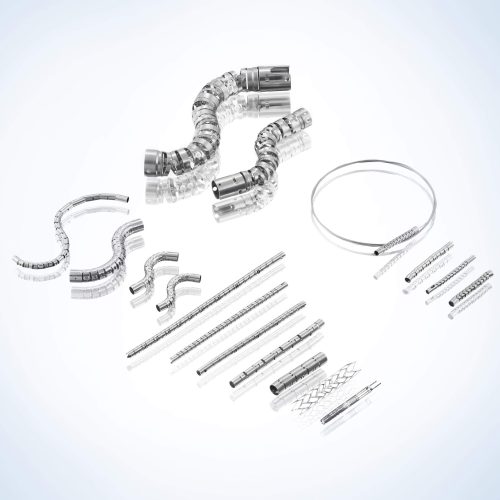

What is Hypotube?
A hypotube is a thin-walled metal tube designed with extreme precision to support medical and industrial applications. These tubes are typically used in catheters, hypodermic tubing, and surgical instruments, providing flexibility, strength, and corrosion resistance. Unlike standard tubing, hypotubes are manufactured with micron-level accuracy, making them ideal for fluid management, minimally invasive surgery, and high-performance engineering.
The most commonly used materials in hypotube production include:
- Stainless Steel (304 & 316L) – Provides high strength, corrosion resistance, and cost-effectiveness. Ideal for general medical applications.
- Nitinol (Nickel-Titanium Alloy) – Offers shape memory and superelasticity, making it perfect for catheter systems that need to navigate anatomical pathways.
- Titanium & Magnesium Alloys – Emerging biocompatible materials that are lightweight and strong, with potential applications in bioabsorbable implants.
Hypotube's main features and benefits
- High Precision: Manufactured to extremely tight tolerances for medical device applications.
- Corrosion Resistance: Withstands harsh sterilization environments and biological exposure.
- Thin Walls & Lightweight Design: Enables better patient outcomes in minimally invasive procedures.
- Customizable Wall Thickness & Diameters: Adaptable for specific medical and industrial needs.
Key Applications of Hypotube
Medical Applications

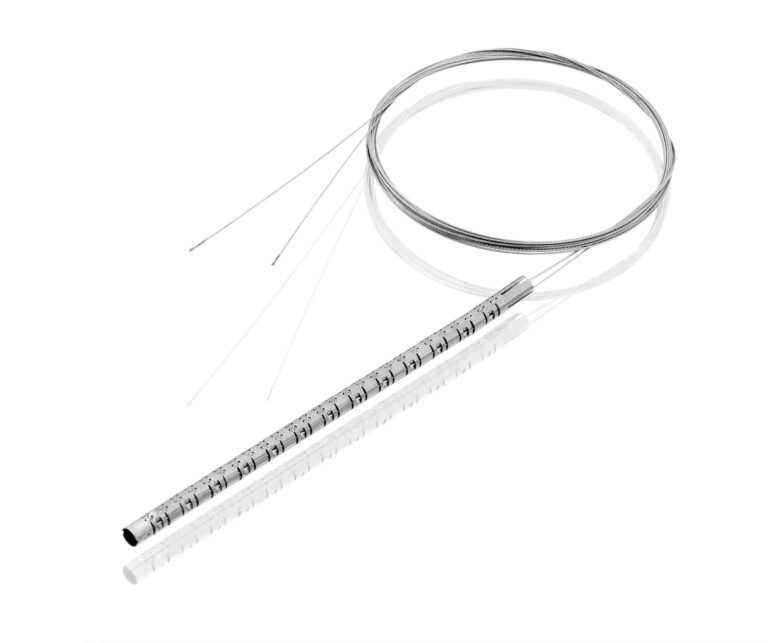

1. Hypotube in Catheter Systems
Hypotubes are a key component in catheter-based interventions, where they serve as the structural backbone of balloon catheters, stent delivery systems, and micro-guidewires. Their ability to maintain pushability, trackability, and flexibility allows them to navigate through complex anatomical pathways, making procedures such as angioplasty, neurovascular interventions, and electrophysiology more effective.
2. Minimally Invasive Surgery
The demand for thin-walled tubes in minimally invasive surgery (MIS) is growing rapidly. Laser-cut hypotubes with burr-free edges enable surgeons to perform precise, controlled movements while reducing tissue trauma. These innovations are particularly beneficial in:
- Endoscopic procedures
- Laparoscopic surgeries
- Robotic-assisted surgeries
3. Hypodermic Tubing for Medical Needles
Stainless steel hypotubing is the foundation of hypodermic needles, which require ultra-precise wall thickness for smooth fluid transfer and injection control. The manufacturing processes behind these tubes ensure sharp, burr-free bevels, allowing for reduced patient discomfort and consistent dosing accuracy.
Application of Hypotube in medical surgery
|
Surgical Procedure |
Role of Hypotube |
Working Principle |
|
Cardiovascular Surgery |
Used in catheters, guidewires, and stent delivery systems to treat arterial blockages, coronary interventions |
Thin-walled, burr-free hypotubes provide enhanced trackability and precise control for navigating narrow and complex arteries. |
|
Minimally Invasive Surgery (MIS) |
Integrated into laparoscopic and robotic-assisted instruments for precise surgical interventions |
Laser-cut hypotubes enhance pushability, flexibility, and durability, allowing fine maneuvering in restricted surgical fields. |
|
Neurovascular Interventions |
Applied in microcatheters, thrombectomy devices, and embolization systems for stroke treatment and aneurysm repair |
Super-flexible, ultra-thin hypotube structures improve trackability, facilitating precise catheter movement in delicate brain vessels. |
|
Peripheral Vascular Procedures |
Utilized in catheters and guidewires to treat peripheral artery disease (PAD), deep vein thrombosis (DVT), and endovascular repair |
Customizable wall thickness and flexibility ensure optimal performance in peripheral arteries and veins. |
|
Urology (Urological Surgeries) |
Incorporated into endoscopic urology instruments such as ureteroscopes and laser lithotripsy devices |
Corrosion-resistant, thin-walled hypotubes provide structural integrity for precision urinary tract interventions. |
|
ENT Surgeries (Ear, Nose, and Throat) |
Used in microsurgical ENT procedures, including cochlear implantation and endoscopic sinus surgery |
Micro-scale hypotubes support precision navigation in narrow anatomical pathways for delicate ENT procedures. |
|
Structural Heart Interventions |
Applied in catheter-based valve repair and replacement procedures, such as TAVR (Transcatheter Aortic Valve Replacement) |
Flexible and durable hypotubes provide support and control for transcatheter devices used in heart valve implantation. |
|
Endoscopy (Medical, Industrial & Electronic) |
Utilized in diagnostic and therapeutic endoscopy, including ureteroscopy, cholangioscopy, gastroenterology, and anorectal procedures |
High-strength, burr-free hypotubes enhance device maneuverability, improving image quality and instrument precision. |
Industrial & Other Applications
Beyond medicine, hypotubes are widely used in precision engineering and high-tech industries, such as:
- Aerospace & Defense: Used in fuel injection systems, sensor housings, and high-pressure fluid control.
- Biotechnology & Laboratory Equipment: Plays a role in fluid chromatography, microfluidics, and analytical instruments.
- Robotics & Automation: Integrated into miniature actuators and mechanical linkages for precision control.
With ongoing advancements in manufacturing processes, hypotube design continues to evolve, making it a critical element in next-generation medical devices and cutting-edge industrial applications.
Types of Hypotube
Different types of hypotubes are designed to meet the needs of various medical and industrial applications. These classifications are based on material composition, structural design, and specific application areas.
(1) Medical Hypotube
Medical hypotubes play a critical role in catheters, guidewires, and injection systems, providing precision, flexibility, and biocompatibility.
- Hypodermic Tubing
Used in hypodermic needles, this tubing features ultra-thin walls, burr-free edges, and precise internal diameters for smooth fluid transfer.
- Guidewire Hypotube
Provides structural support for catheter guidewires, enhancing pushability and trackability while navigating complex anatomical pathways.
- Catheter Hypotube
Forms the backbone of minimally invasive catheter systems, ensuring structural integrity while allowing flexible movement through the body.
- Stent Delivery Hypotube
Designed for stent deployment systems, these hypotubes require precise control over wall thickness, flexibility, and biomechanical performance.
(2) Industrial & Scientific Hypotube
Beyond medical applications, hypotubes are widely used in aerospace, microelectronics, and fluid management systems due to their high precision, corrosion resistance, and durability.
- Fluid Management Tubing
Used in laboratory instruments, biotechnology devices, and chemical processing systems for precise liquid or gas transfer.
- Aerospace Hypotubes
Utilized in fuel injection systems, high-pressure fluid control, and sensor housings in aerospace engineering.
- Microelectronics Hypotube
Applied in semiconductor manufacturing, fiber optics, and miniature robotics, where high dimensional accuracy is required.
The production of hypotubes requires high-precision engineering to achieve thin-walled tubes with burr-free edges and consistent wall thickness. Modern manufacturing processes ensure that these tubes meet the stringent demands of medical devices, aerospace systems, and industrial applications.
Production Processes
The manufacturing of hypotubes typically involves several key steps:
- Cold Drawing
- Stainless steel rods or Nitinol wires are drawn through progressively smaller dies, refining the outer diameter (OD) and wall thickness.
- This process enhances mechanical strength, dimensional accuracy, and smoothness.
- Cold drawing also improves corrosion resistance, making the hypotube ideal for medical applications.

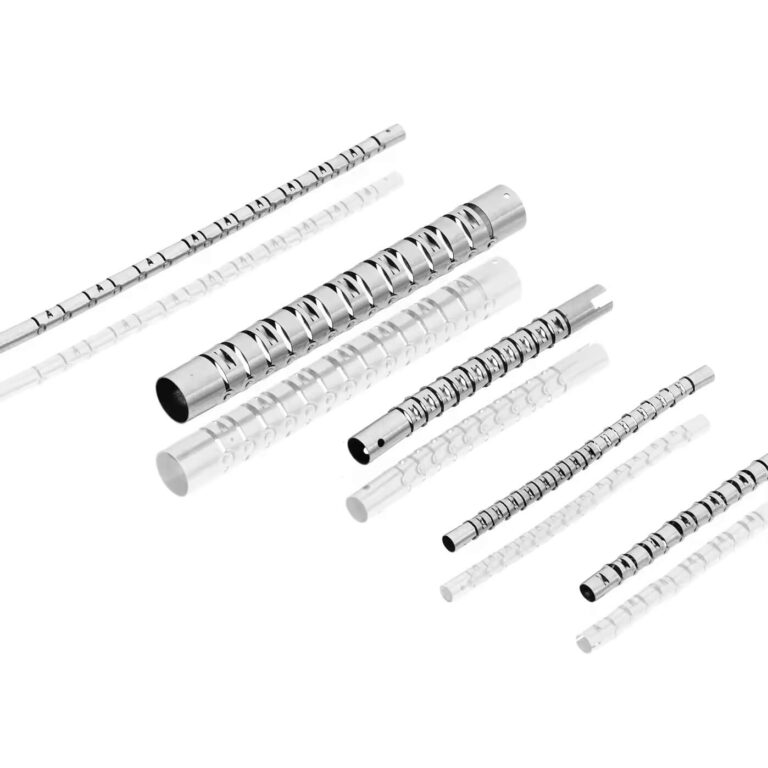

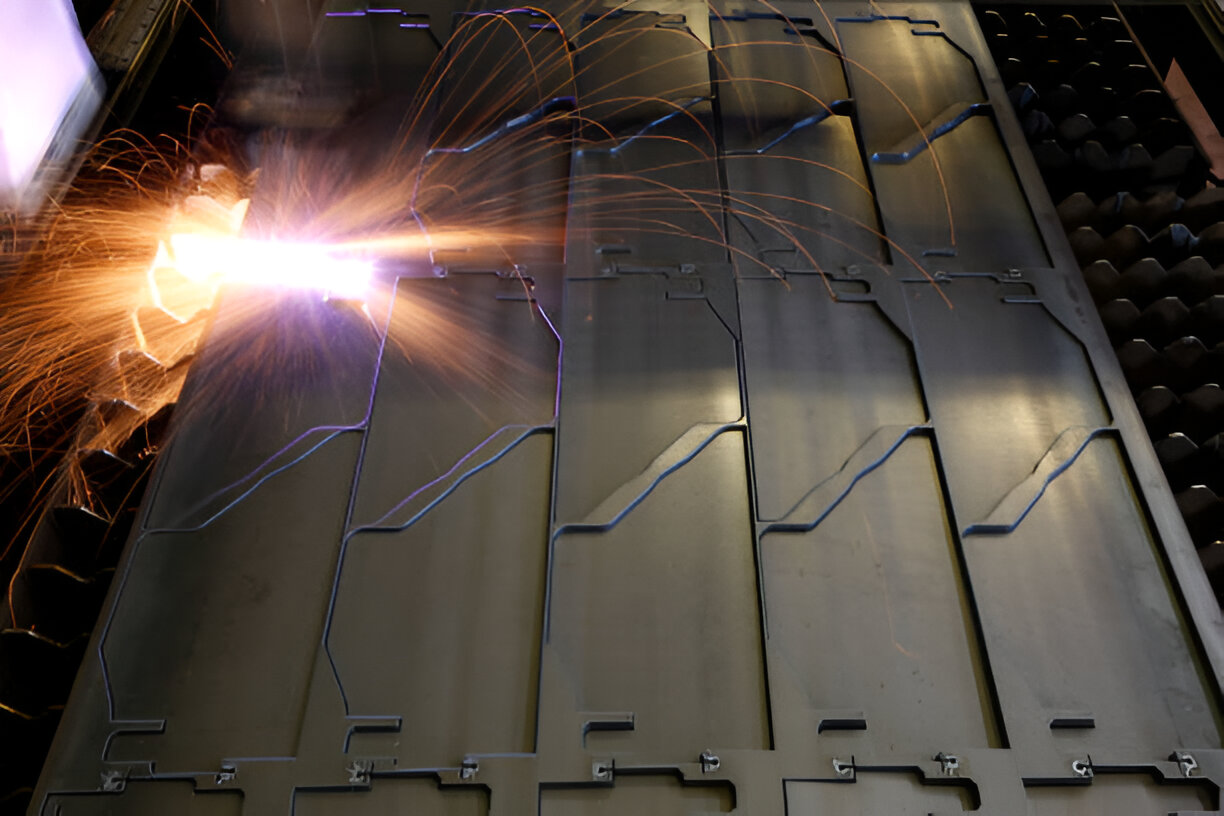

- Laser Cutting
- Laser technology enables complex geometries, such as flexible catheter shafts and micro-perforations.
- The process ensures burr-free edges, eliminating sharp fragments that could damage anatomical pathways.
- Compared to traditional machining, laser cutting offers superior precision with minimal material waste.
- Surface Treatments
- Electropolishing removes micro-imperfections and enhances biocompatibility.
- Hydrophilic coatings improve the tube’s lubricity, aiding in smoother navigation through patient anatomy.
- Passivation protects the metal from oxidation, reinforcing corrosion resistance.
Quality Control Measures
Ensuring high-quality hypotubes requires stringent inspection protocols to meet medical and industrial standards.
- Wall Thickness & Tolerance Control
- Achieving ultra-thin walls (as low as 0.05 mm) while maintaining structural integrity.
- Precision laser measurement systems ensure consistent inner diameter (ID) and outer diameter (OD).
- ISO 13485 Certification
- Compliance with ISO 13485 guarantees that hypotubes meet medical device regulations.
- This ensures patient safety, performance reliability, and regulatory approval.
- Burr-Free Processing
- Any micro-burrs can cause patient discomfort or disrupt fluid flow in hypodermic tubing.
- Electrochemical deburring ensures smooth tube edges, making them safe for patient use.
Performance Characteristics of Hypotube
To function effectively in minimally invasive procedures and high-precision applications, hypotubes must exhibit superior performance characteristics.
Corrosion Resistance
- Stainless steel hypotubing resists oxidation and degradation, even when exposed to bodily fluids and sterilization chemicals.
- Nitinol hypotubes withstand biological environments, making them ideal for implants and long-term medical use.
Thin-Walled Tubes
- Minimally invasive devices require tubes with ultra-thin walls to navigate narrow anatomical pathways.
- High-strength alloys allow for thinner walls while maintaining durability.
High Precision
- Medical hypotube catheters must maintain micron-level accuracy to ensure fluid consistency and structural integrity.
- Laser-cut hypotubes provide smooth edges and customized flexibility, allowing for complex surgical movements.
Anatomical Pathways Adaptability
- Hypotubes are engineered to follow the natural curvature of blood vessels and organs.
- Flexible hypotube designs improve device maneuverability, enhancing surgical precision.
Improving Patient Outcomes
- Burr-free hypotubes reduce tissue damage and improve patient comfort.
- Advanced coatings minimize friction, leading to smoother catheter insertion and faster recovery times.
Conclusion
hypotube is a thin-walled, high-precision metal tube that plays a vital role in medical devices, industrial applications and aerospace engineering. Their corrosion resistance, flexibility and micron-level accuracy make them essential tools in catheter systems, subcutaneous injection tubes and minimally invasive surgical tools, driving the development of the medical industry and other related industries. If you are looking for a hypotube manufacturer, you need to find out if they have relevant qualifications, such as ISO 13485 Certification, to ensure that you can purchase hypotube for medical surgery and other related industries.
